What Gulf Coast survey & soils reports look like — and when you need them

Boundary, topo, as-built, elevation certificates, wetland delineation, and geotech / CPT — for Ono Island, Orange Beach, Gulf Shores, and Perdido Key.

Surveyors Guide Builders Guide

Sample document visuals for education

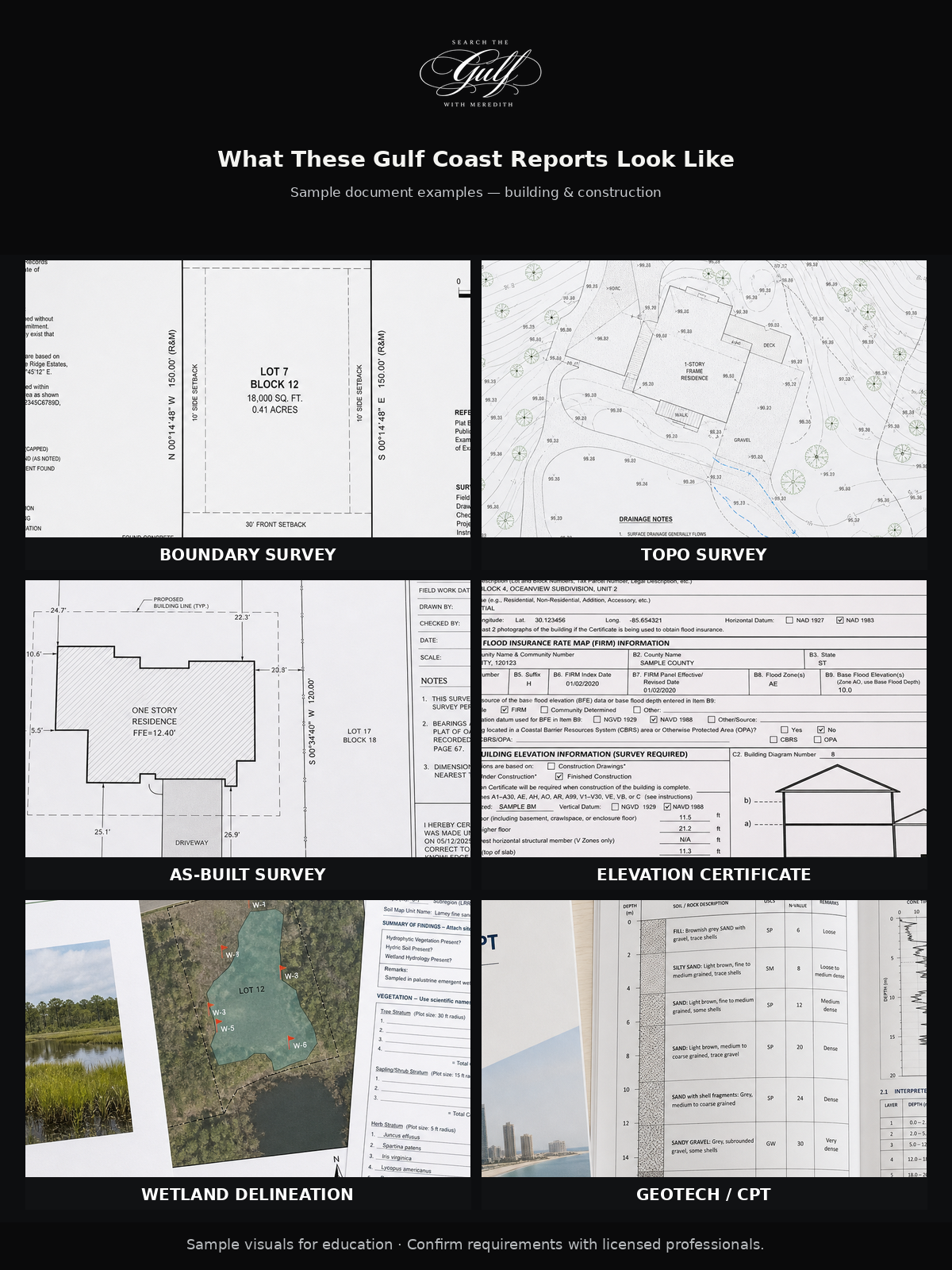

When clients ask what these reports actually look like, it helps to see the paperwork — not just the lot. Below are sample-style examples of a boundary survey report, a topographic survey report, an as-built survey report, an elevation certificate, a wetland delineation report, and a geotech / CPT soils report. Your real documents will be project-specific and prepared by licensed professionals.

I advise buyers and builders’ clients on Ono Island, Orange Beach, Gulf Shores, and Perdido Key full-time, and have for years. Flood zones, setbacks, and sensitive coastal ecosystems shape which documents belong in your file — and when.

A clear way to remember it

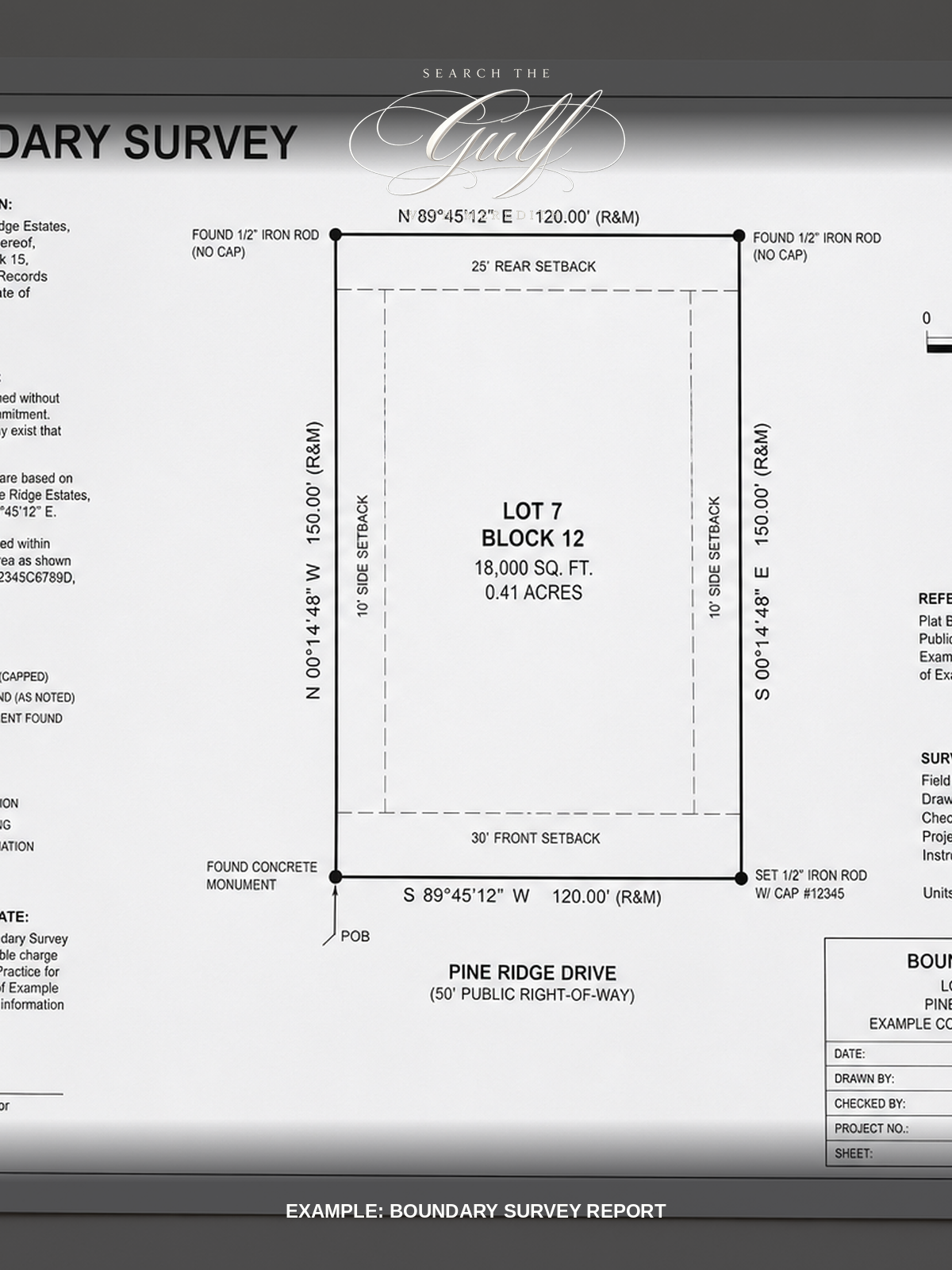

Boundary = legal edges. Topo = the lay of the land. As-built = what actually got built. Elevation certificate = flood and insurance elevations. Wetland delineation = protected wetland edges. Geotech / CPT = what the soil can safely carry.

You usually want this early: before purchase decisions harden, and before permits and staking. Planning range in Baldwin County conversations is often about $400–$1,500 for residential work (scope changes the number).

Design and grading

Topographic (topo) survey report

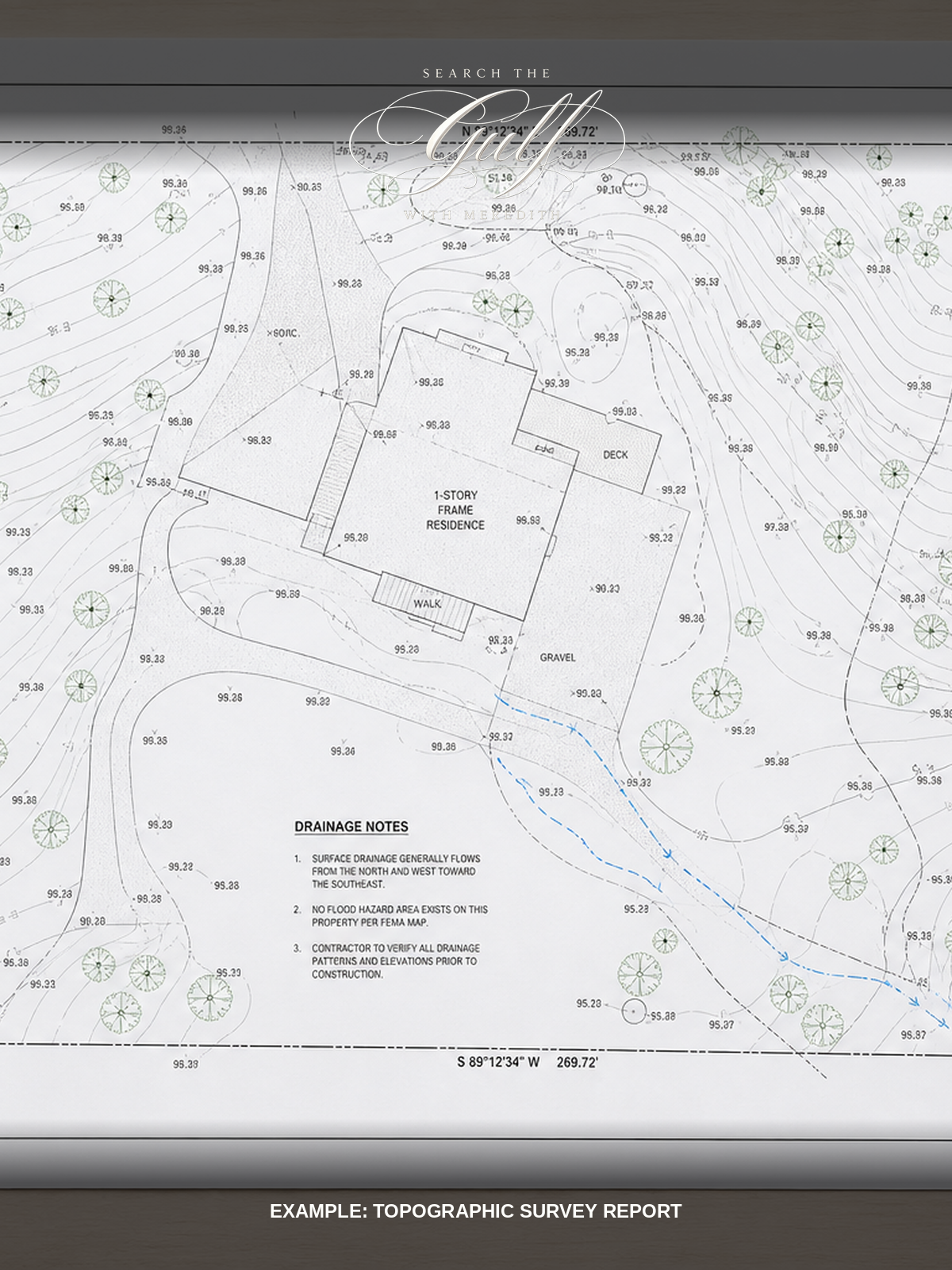

A topo report maps contours, spot elevations, drainage paths, trees, utilities, and site features. It answers what the terrain is doing — essential for house placement, grading, and flood-aware design on coastal lots.

Often prepared with the boundary work, or as a bundled package. Planning conversations sometimes cite roughly $935+ standalone, or a combined boundary/topo scope. Confirm with a written estimate.

After construction

As-built survey report

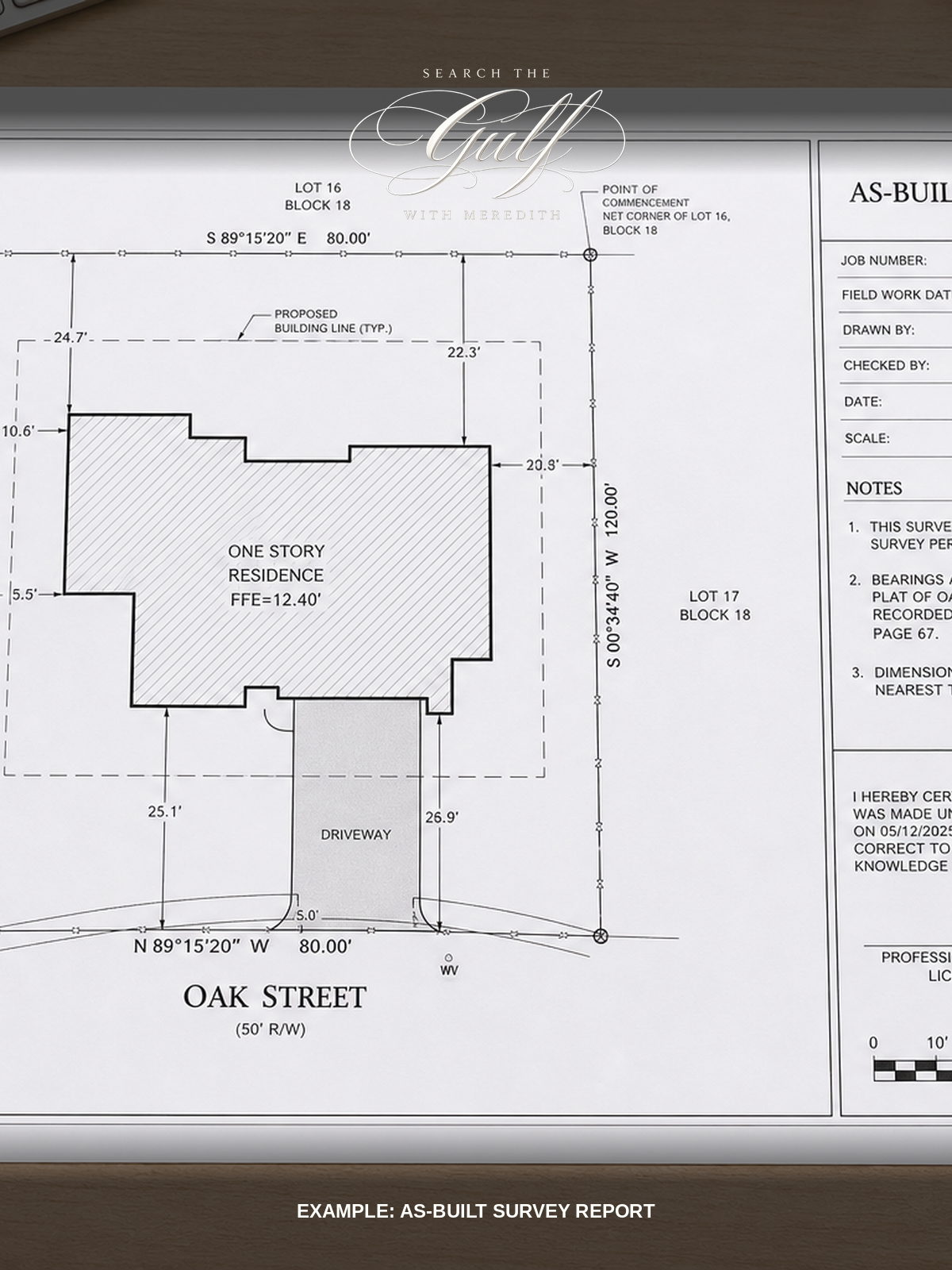

An as-built report shows the finished structure as it actually stands — footprint, dimensions, setbacks from lines, and related site improvements — compared against what was proposed. It is the compliance close after the build.

During construction you still need staking and the early boundary/topo foundation. After the last work is complete, the as-built (often with an elevation certificate) supports certificate of occupancy and insurance files. Planning range: about $700–$2,500.

Timing at a glance

Before / during: boundary + topo (+ staking as you build). After: as-built, often with an elevation certificate. Wetland and geotech timing follows the lot and permit path.

Flood and insurance

Elevation certificate

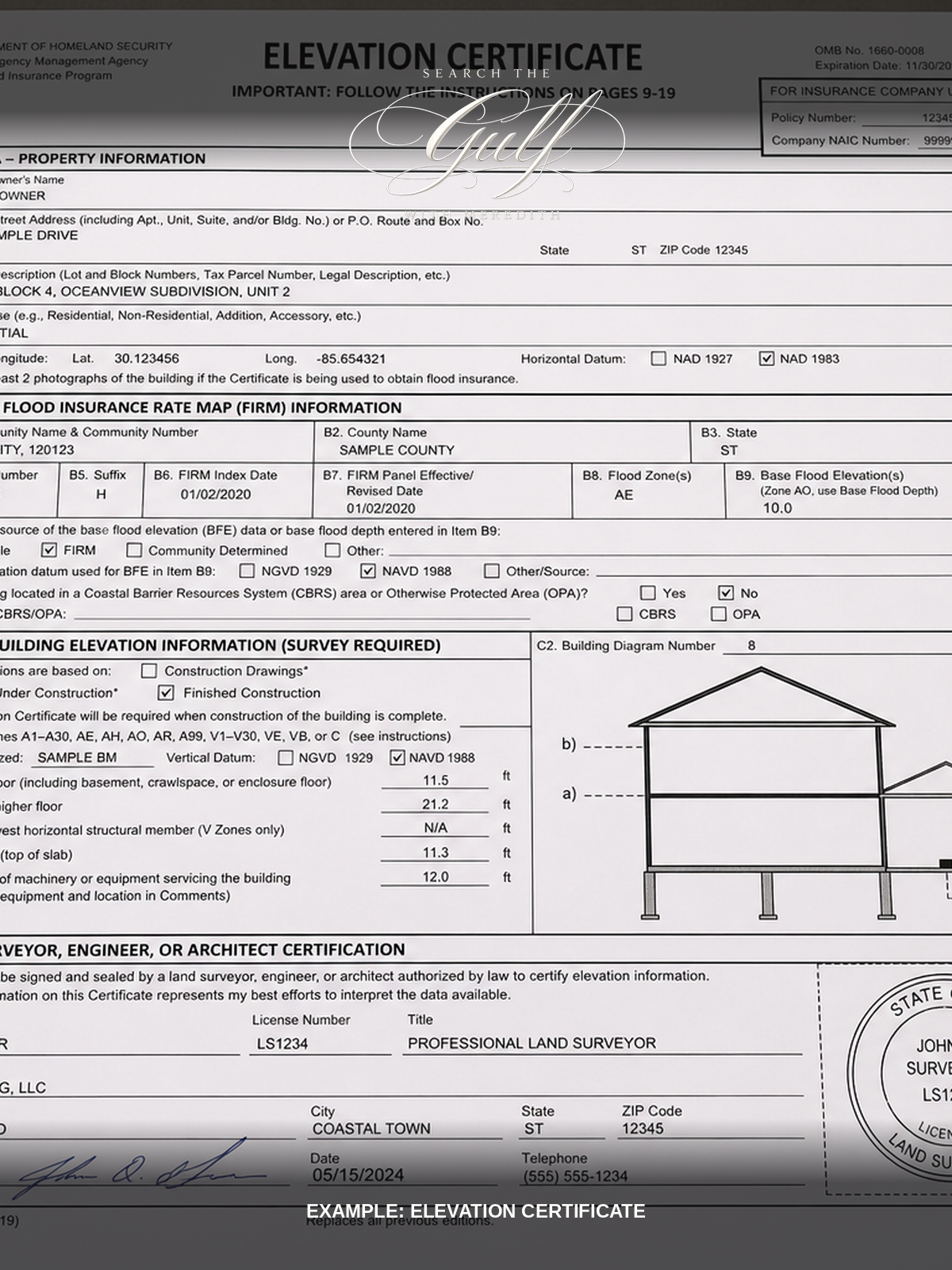

An elevation certificate is a FEMA National Flood Insurance Program form, completed and certified by a licensed surveyor or engineer. It documents finished floor elevations, lowest adjacent grades, machinery elevations, and flood-zone / FIRM details. Lenders and insurers use it to evaluate compliance and flood insurance rating.

It is not automatically required in the same way for every Gulf Coast property — zone, structure type, and lender/insurer requirements drive the need. Planning range: about $450–$1,200.

More context: flood zones and elevation certificates · surveyors in Orange Beach and surrounding areas.

Environmental

Wetland delineation report

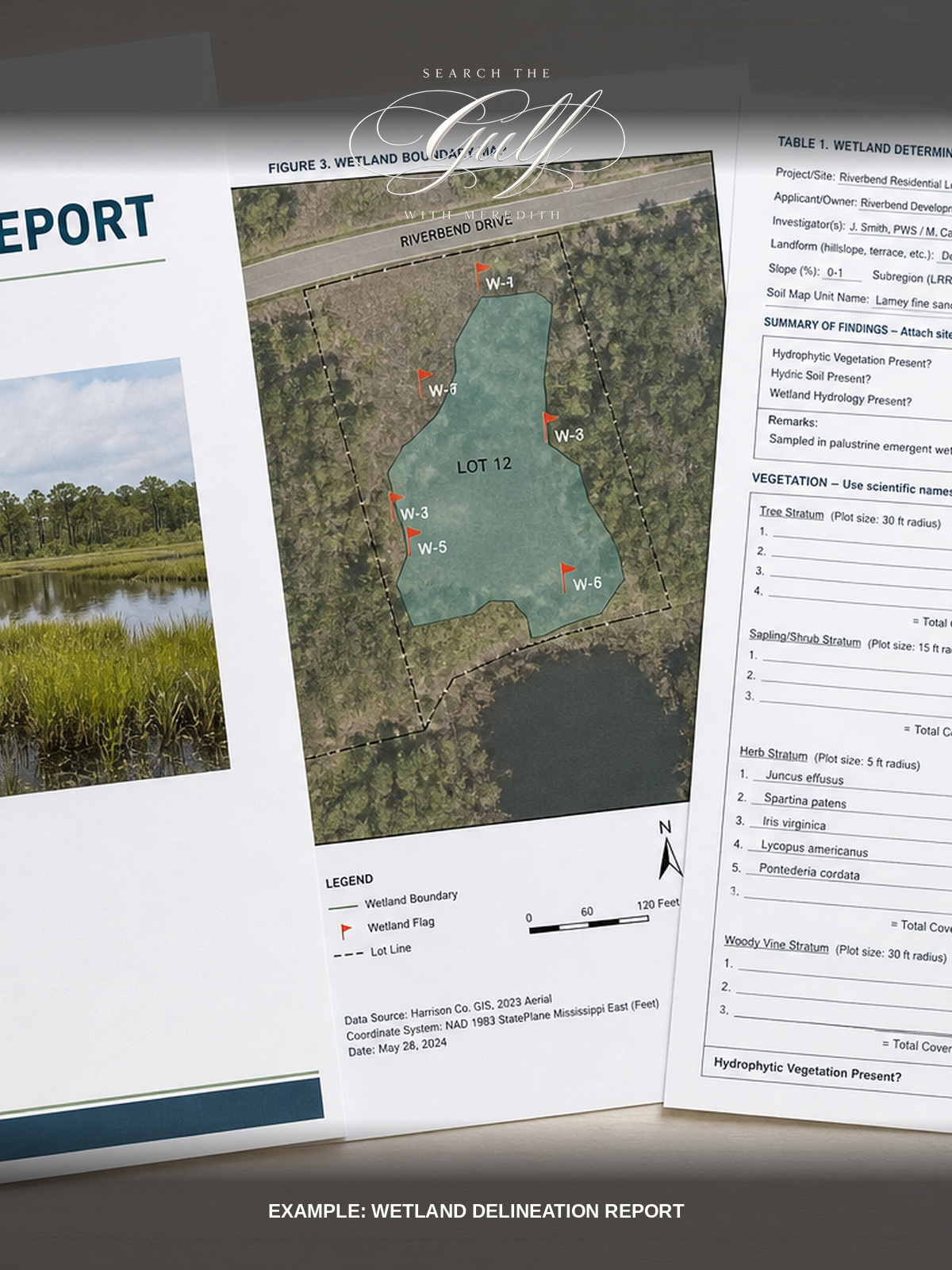

A wetland delineation report maps protected wetland boundaries on a lot using soil, vegetation, and hydrology. The package often includes a cover report, a boundary map with flagged points, and determination data forms. It is commonly needed before digging on sensitive coastal sites and for permit conversations with the applicable reviewing authorities.

Planning range for small lots is often about $1,500–$3,500. Confirm scope and acceptance requirements with the provider and the reviewing authority.

Foundations

Geotech soils report & the CPT cone

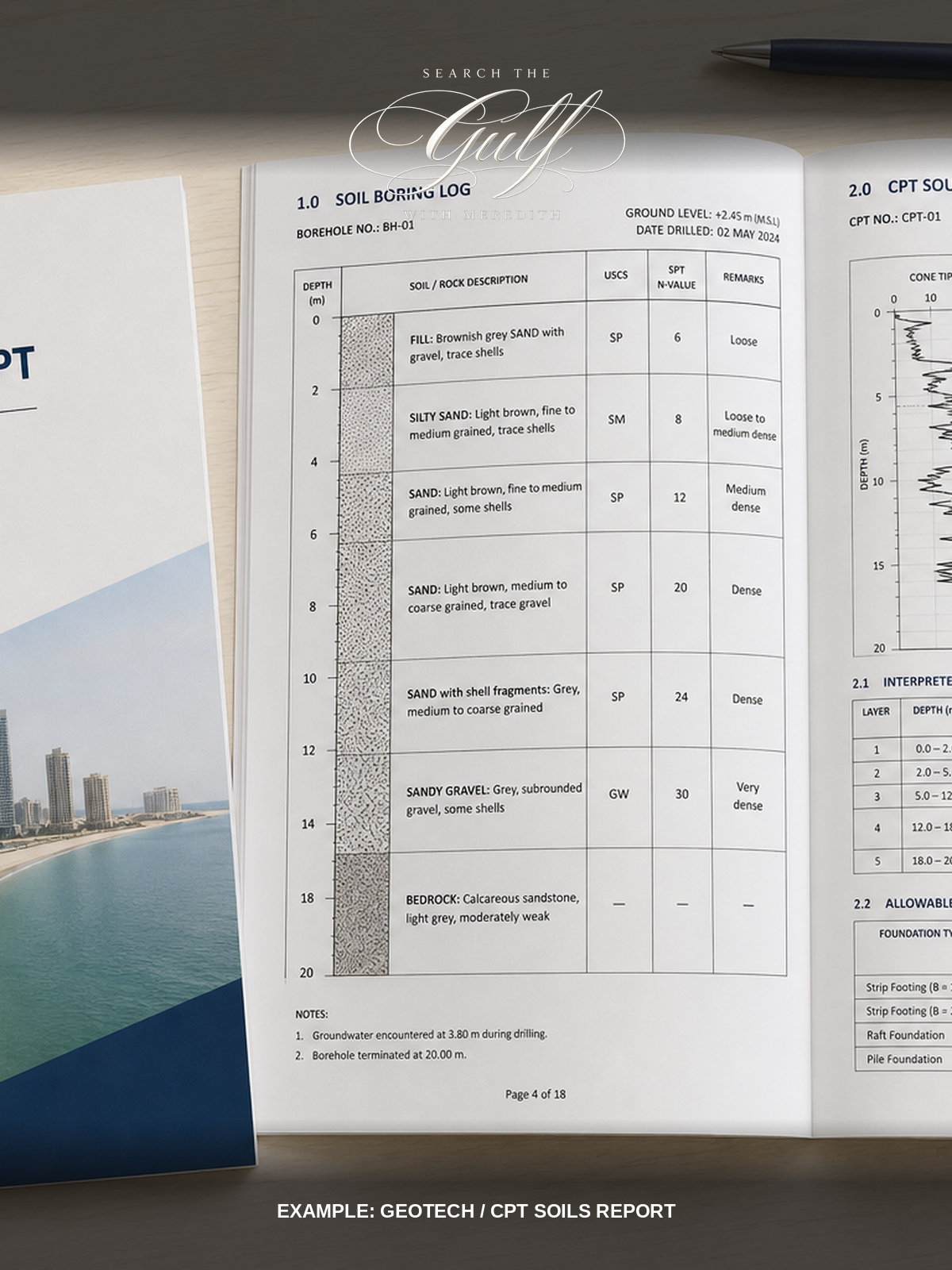

A geotechnical soils report documents soil composition, strength, groundwater, and foundation recommendations. A cone penetrometer test (CPT) pushes a specialized cone-tipped probe into the ground to measure resistance and soil behavior with depth — often shown in the report as CPT graphs alongside boring logs and bearing-capacity tables.

On sandy, variable Gulf Coast ground, this is about safe foundations. Planning range: about $1,500–$6,000 depending on scope.

Call or text me if you want help aligning a geotech introduction for your build. For the builder conversation that sits beside soils and surveys, see Gulf Coast home builders.

“Boundary is the legal edge. Topo is the lay of the land. As-built is what actually got erected. Elevation, wetlands, and soils keep a Gulf Coast build honest.”

Planning numbers

Estimated cost ranges (Baldwin County conversations)

Planning tools only — not quotes. Lot size, access, and complexity change cost.

Need introductions

Call or text me with your lot and build goals. I will help align survey, wetland, and geotech conversations — and walk you through what belongs in your Orange Beach, Ono Island, Gulf Shores, or Perdido Key file.

Keep reading

Related guides

Planning note: Images are sample educational visuals, not official project documents. Costs, FEMA forms, environmental rules, and permit processes change. This is general educational information — not surveying, engineering, legal, insurance, or environmental advice. Use licensed professionals and written estimates. Housing opportunities are available without regard to race, color, religion, sex, disability, familial status, national origin, or other characteristics protected by fair housing law.
